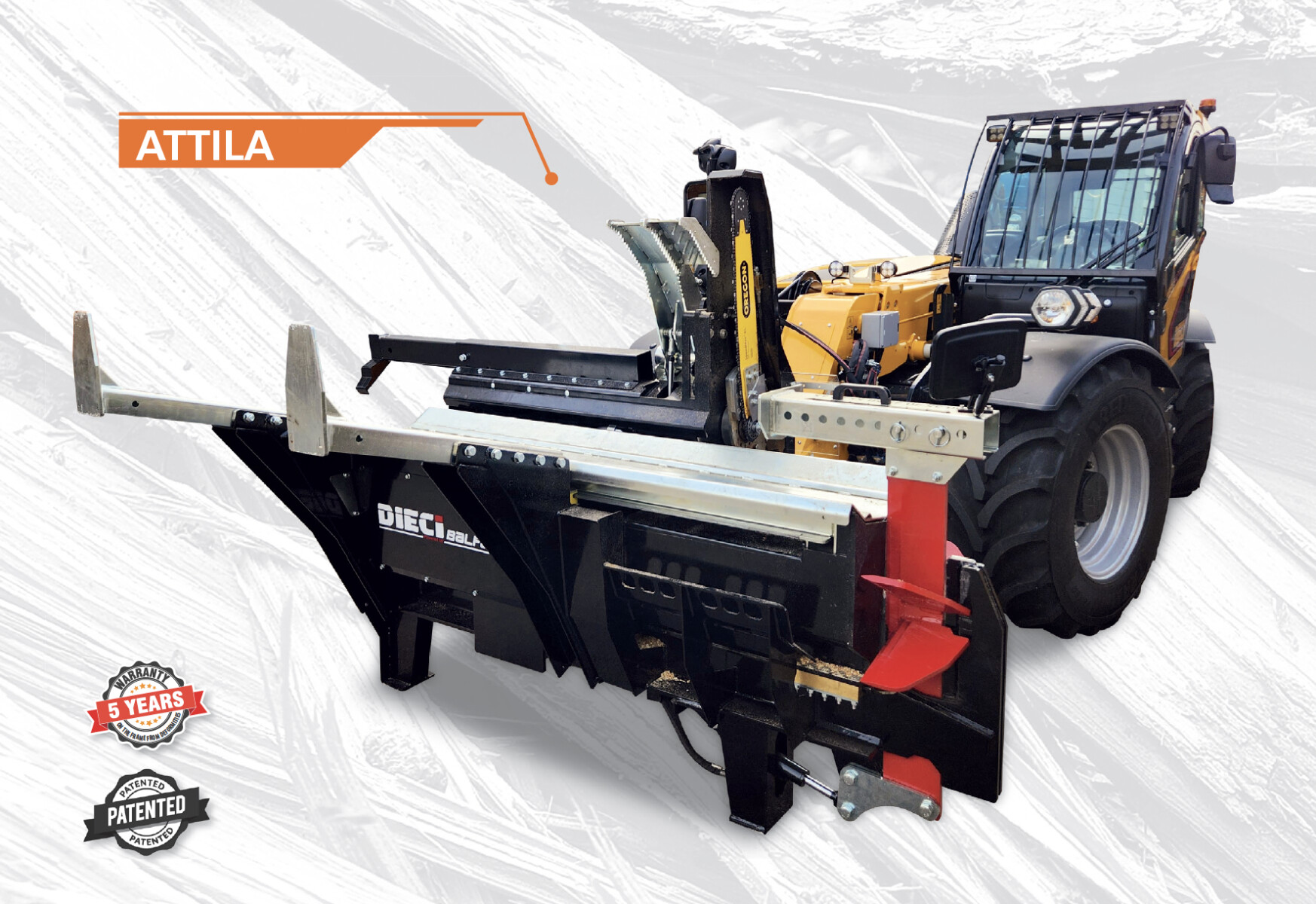

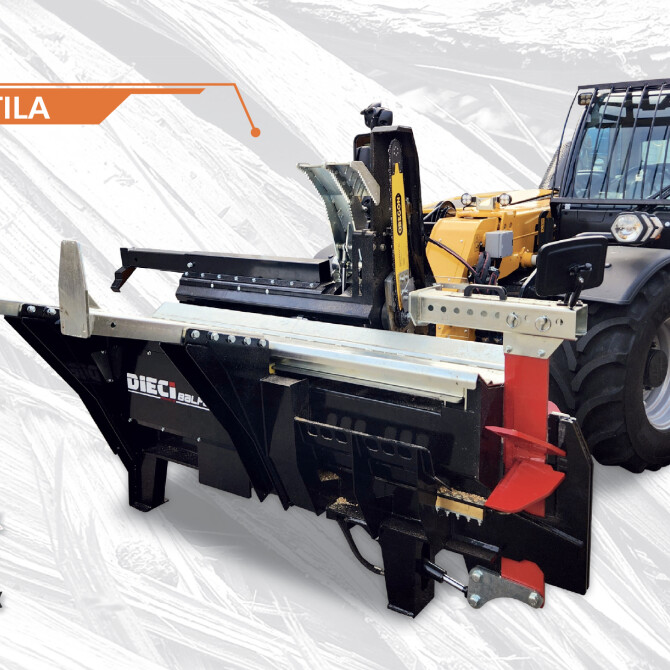

Attila

New on the market
chipper for front loaders, manipulators, excavators
Cutting force 25 tons
Diameter max. 550 mm
Length max. 3 m
Cutting length 300-650 mm
Weight 1600 kg
Dimensions 2,3x1,6x1,9 m
Chainsaw length 750 mm
Chainsaw speed 23-46 m/sec
Required hydraulic volume 60-110 l/min
Working hydraulic pressure 210-260 bar
Chipping force 25 tons
Hydraulic connection 2x 3/4" hose + 1x 3/8" drain hose
12 V electrical connection with plug
Hull diameter max. 550 mm
Hull length max. 3 m
Cutting length adjustment 300-650 mm
Available wedges 4-6-8 ways
Weight 1600 kg
Dimensions (WxDxH) 2, 3x1,6x1,9 m
Length of saw blade 750 mm
Rated chain speed 23-46 m/sec
Lubricating oil tank capacity 11 litres

• New on the market
• front loader for front loaders, manipulators, excavators
• Cutting force 25 tons
• Diameter max. 550 mm
• Length max. 3 m
• Cutting length 300-650 mm
• Weight 1600 kg
• Dimensions 2,3x1,6x1,9 m
• Chainsaw length 750 mm
• Chainsaw speed 23-46 m/sec
